- Place of Origin: zhejiang china
- Brand Name: TDS
- Model Number: TD-2200

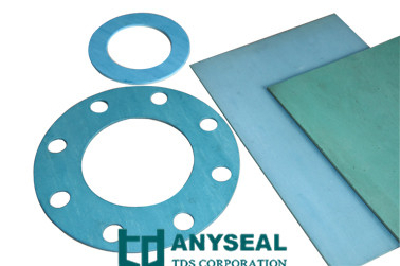

non-asbestos sheet
TDS non-asbestos sheet is made from Kevla fibre, carbon fiber synthetic rubber, filling material and dye, compressed and calendered under high temperature and pressure into a sheet form. It eliminates asbestos-rubber sheet essentially and thoroughly.
style | Products |
TD-2200 | Non-asbestos sheet(200) |
TD-2300 | Non-asbestos sheet(300) |
TD-2400 | Non-asbestos sheet(400) |
TD-2400M | Non-asbestos sheet with Wire mesh |
Wire mesh reinforced Non-asbestos sheet with graphite coating | |
TD-2200N | Oil-resisting non-asbestos sheet(200) |
TD-2300N | Oil-resisting non-asbestos sheet(300) |
Oil-resisting non-asbestos sheet(350) | |
TD-3501 | Aramid fibers sheet used in ship |
TD-3502 | Aramid fibers sheet used in compressor |
TD-4500 | Universal carbon fiber sheet |
TD-2100 | Non-asbestos beater sheet |
TD-2100I | Non-asbestos beater sheet reinforced with tanged carbon steel |
TD-2100DI | Non-asbestos Exhaust Gasket sheet with doubel-face tanged CS |
Indicators and application:
style | 2200 | 2300 | 2400 | 2400M | 2400MG | 2200N | 2300N | 2400N | 3500 | 3502 | 4500 | 2100 | |
Tensile strength Mpa | 6 | 9 | 12.5 | 25 | 25 | 8 | 11 | 12 | 11 | 11 | 10 | 3 | |
Oil absorption≤ % | 15 | 15 | 18 | 15 | 15 | 15 | 15 | 18 | 18 | ||||
Thickness increase % | 16 | 16 | 20 | 16 | 16 | 16 | 16 | 20 | 20 | ||||
Compressibility≥% | 12±5 | 12±5 | 12±5 | 12±5 | 12±5 | 12±5 | 12±5 | 12±5 | 12±5 | 12±5 | 12±5 | 12±5 | |
Recovery≥% | 45 | 45 | 45 | 45 | 45 | 45 | 45 | 45 | 46 | 46 | 45 | 40 | |
Density g/cm3 | 1.9 | 1.9 | 1.9 | 2.2 | 2.2 | 1.9 | 1.9 | 1.9 | 1.8 | 1.8 | 1.7 | 0.5 | |
Tmax: ℃ | 200 | 300 | 400 | 450 | 450 | 200 | 300 | 400 | 350 | 350 | 400 | 350 | |
Pmax: Mpa | 1.5 | 3.0 | 5.0 | 11.0 | 11.0 | 2.0 | 3.0 | 3.5 | 4.5 | 4.0 | 4.0 | 3.0 | |
Resistanceto media | Water, steam, salt
| High temperature, high-pressure steam
| Water, steam, oil, solvents | Sea water, steam, oils, solvents | |||||||||
SiZE
| 1500*2000*0.5-6MM 1500*1500*0.5-6MM 1500*4000*0.5-6MM 1000*1500*0.5-6MM 2700*3800*0.5-6MM 1270*3810*0.5-6MM | ||||||||||||
