- Place of Origin: zhejiang china
- Brand Name: TDS
- Model Number: TD-45
PTFE Products

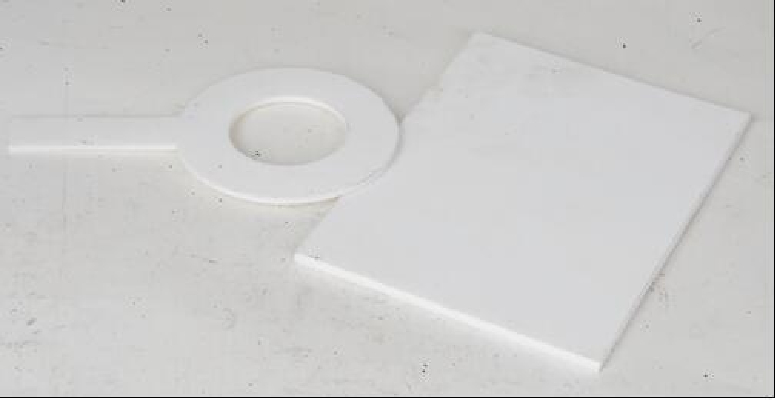

DS PTFE product includes sheet, Tube Rod and gaskets etc., they are molded, skived or cut from 100% virgin PTFE. It has the best chemical corrosion resistance among known plastics. Without being aging, lowest friction coefficient, wear resistance. The unloaded operating temperature range is -180~ 260C.The filled PTFE products are molded PTFE resin mixed with the most frequently used filler materials such as glass fiber, carbon fiber and graphite etc. The filled PTFE has improved compression strength, better abrasion resistance, high thermal conductivity and lower thermal expansion compared with pure PTFE products.
TD-40E | TD-41 | TD-42 | TD-43 | |
name | Four fluorine soft board | Blue modified ptfe plate | Ivory modified ptfe plate | Tan modified ptfe plate |
color | white | Blue | Milky white | tan |
ingredients | 100%PTFE | PTFE Adding glass beads | PTFE Adding barium sulfate | PTFE Add silica |
temperature（℃） | -200～ 150 | -200～ 200 | -200～ 200 | -200～ 200 |
Continuous maximum pressure（bar) | 50 | 55 | 55 | 55 |
Gas permeability(cm3/s) GB/T9129-2003 | <1×10-3 | <1×10-3 | <1×10-3 | <1×10-3 |
Creep relaxation(%) ASTMF38 | 30 | 40 | 25 | 35 |
Range of compression ratio(%) ASTMF36-99 | 20～２8 | ２５～４０ | ２５～３0 | ２５～３5 |
Resilient rate ASTMF36-99 | >21 | >25 | >25 | >25 |
The tensile strengthCASTMF152-95 | 13 | 11 | 11 | 12 |
Modified ptfe plate index and application
style | Products | Tmax: ℃ | Pmax: Mpa | SIZE MM |
TD-40 | PTFE sheet | -100 ~ 250 | 10 | 1000*1000*0.5*60 2000*2000*0.5*60 |
TD-41 | Blue PEFE sheet with filler | -100 ~ 260 | 16 | 1000*1000*0.5*60 2000*2000*0.5*60 |
TD-42 | Ivory PEFE sheet with filler | -100 ~ 260 | 16 | 1000*1000*0.5*60 2000*2000*0.5*60 |
TD-43 | Brown PEFE sheet with filler | -100 ~ 260 | 16 | 1000*1000*0.5*60 2000*2000*0.5*60 |

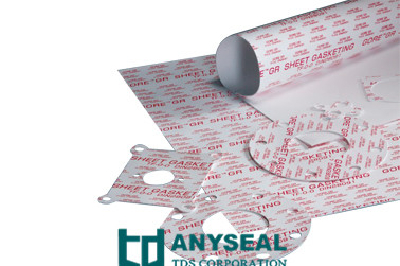

TD-45 | Expanded PTFE sheet | Gore, Klinger, Garlock, Sealon etc., According to manufacturer | 1500*1500*1.6，3.2，5 | |
TD-46 | PTFE guide tape | -100 ~ 250 | 16 | 10*3，20*5，20*7 |
TD-47 | P TFE Skived Film | -100 ~ 250 | 10 | 0.3-0.5MM |
TD-48 | PTFE pipe | -100 ~ 250 | 10 | ￠10-200 |
TD-49 | PFFE rod | -100 ~ 250 | 10 | ￠10-200 |
